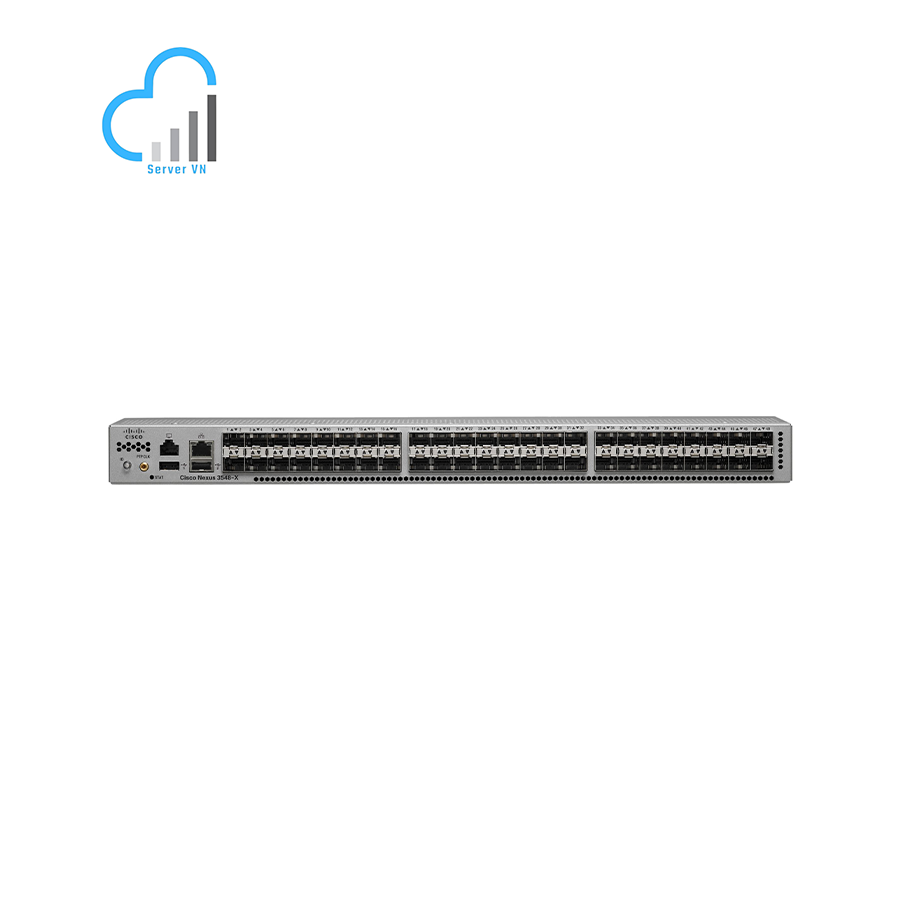

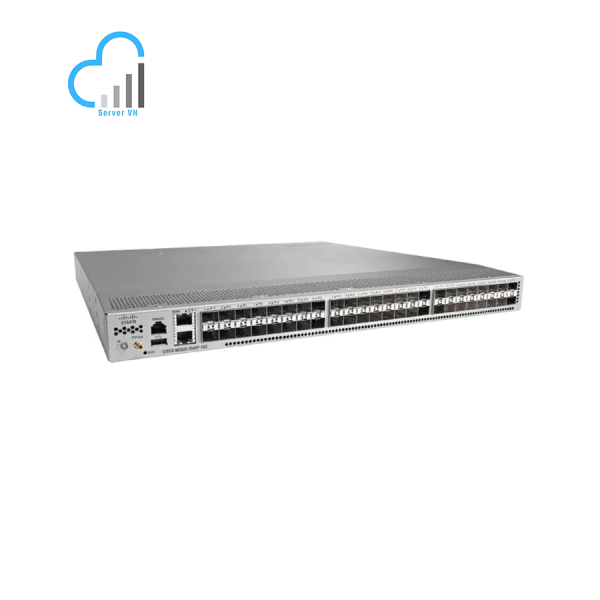

Cisco Nexus N3K-C3548P-10G

Liên hệ

Giá trên chưa bao gồm 10% thuế VAT

Thông tin sản phẩm Switch Cisco N3K-3548P-10G
  • Dòng sản phẩm: Cisco N3K-C3524P-10G Nexus 3500 Series Switch
  • Mã sản phẩm: N3K-C3548P-10G
  • Cổng kết nối: 48 x 10 SFP+
  • Bảo hành: 12 tháng
Mã: SVN-C3548P-10G Danh mục: ,

Cisco N3K-C3548P-10G Switch 48 SFP+ ports, Enhanced

Cisco Nexus 3548P-10G (N3K-C3548P-10G) là thiết bị chuyển mạch với 48 cổng SFP+ (1 Gbps hoặc 10 Gbps), 1 cổng quản lý 10/100/1000 Mbps, 1 cổng console và 2 cổng USB. N3K-C3548P-10G là switch layer 2 và 3 tốc độ đường truyền với độ trễ cực thấp.

Thông số kỹ thuật Switch Cisco N3K-C3548P-10G

Product NumberN3K-C3548P-10G
Product DescriptionCisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 – 48 x 10G SFP+ Ethernet ports – Ultra-Low latency – Managed
Number of EtherChannels24
Number of ports per EtherChannel24
Buffer size6 MB shared among 16 ports; 18 MB total
Boot flash memory2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

Dimensions (height x width x depth)1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)
Weight17.4 lb (7.9 kg)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

N3K-C3548P-10G Specification

N3K-C3548P-10G Specification

Product NumberN3K-C3548P-10G
Product DescriptionCisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports - Ultra-Low latency - Managed
Physical●  48 fixed SFP+ ports (1 or 10 Gbps)
●  Dual redundant hot-swappable power supplies
●  Four individual redundant hot-swappable fans
●  One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*
●  Two 10/100/1000-Mbps management ports
●  One RS-232 serial console port
●  One USB port
●  Locator LED
●  Locator LED button
Performance●  960-Gbps switching capacity
●  Forwarding rate of 720 million packets per second (mpps)
●  Line-rate traffic throughput (both Layer 2 and 3) on all ports
●  Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Typical operating power●  152 watts (W)
Maximum power●  265W
Typical heat dissipation●  519 BTUs per hr
Maximum heat dissipation●  904 BTUs per hr
ModeNormal ModeWarp Mode
Number of MAC addresses64,0008000
Number of IPv4 unicast routes24,0004,000
Number of IPv4 hosts64,0008000
Number of IPv4 multicast routes80008000
Number of VLANS4096
Number of ACL entries4096
Number of spanning-tree instancesRapid Spanning Tree Protocol (RSTP): 512Multiple Spanning Tree (MST) Protocol: 64
Number of EtherChannels24
Number of ports per EtherChannel24
Buffer size6 MB shared among 16 ports; 18 MB total
Boot flash memory2 GB (3524P and 3548P models)4 GB (3524X and 3548X models)
Power
Number of power supplies2 (redundant)
Power supply types●  AC (forward and reversed airflow)
●  DC (forward and reversed airflow)
Input voltage100 to 240 VAC
Frequency50 to 60 Hz
Power supply efficiency89 to 91% at 220V
CoolingForward and reversed airflow schemes
●  Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports)
●  Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)Four individual, hot-swappable fans (3+1 redundant)
Environment
Dimensions (height x width x depth)1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)
Weight17.4 lb (7.9 kg)
Operating temperature32 to 104° F (0 to 40°C)
Storage temperature-40 to 158° F (-40 to 70°C)
Relative humidity (operating)●  10 to 85% noncondensing
●  Up to 5 days at maximum (85%) humidity
●  Recommend ASHRAE data center environment
Relative humidity (nonoperating)5 to 95% noncondensing
Altitude0 to 10,000 ft (0 to 3000m)
