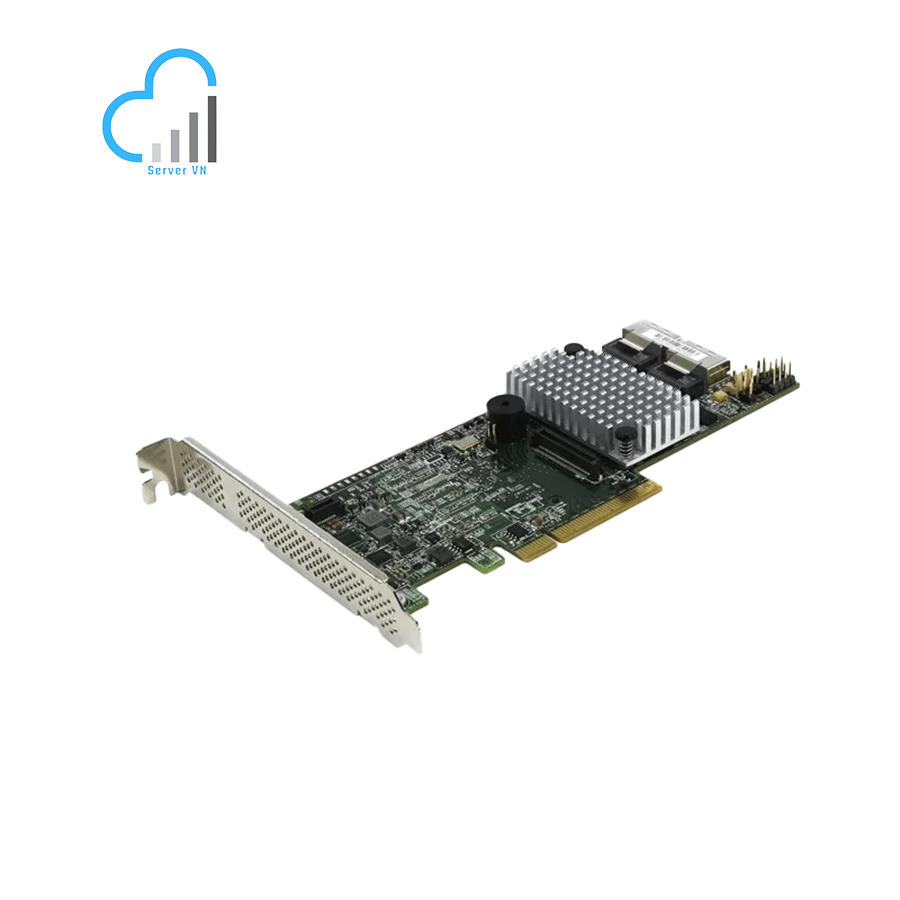

Card Raid LSI MegaRAID SAS 9271-8i

MegaRAID® SAS 9271-8i
– Solution Provided: Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)
– Physical Dimensions: MD2 Low profile (6.6” X 2.536”)
– Internal Connectors: Two Mini-SAS SFF8087 internal connectors (side mount)
– Device Support: Up to 128 SAS and/or SATA hard drives and SSDs
– Host Bus Type: x8 lane PCI Express 3.0 compliant
– Data Transfer Rates: Up to 6Gb/s per port
– I/O Processor/SAS Controller: LSI SAS 2208 Dual-Core RAID on Chip (ROC)
– Cache Memory: 1 GB 1333MHz DDRIII SDRAM
– Cache Protection:
MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297)
MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Key RAID Data Protection
Features
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50 and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or
reconstruction (RLM)
• Single controller Multipathing (failover)
• Load Balancing
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD Support with SSD Guard™ technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible Hot
Spare support
–Automatic rebuild
–Enclosure affinity
–Emergency SATA hot spare for SAS arrays
• Enclosure management
–SES (inband)
–SGPIO (sideband)
Operating Temperature Maximum ambient: Controller Card: 60°C, with optional CVM01: 55°C, with optional LSIiBBU09: 55°C
Operating Voltage +3.3V, +12V
MTBF (Calculated) 1,031,514hours
Hardware Warranty 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC;
BSMI; C-tick
RAID Management MegaRAID Management Suite
• MegaRAID Storage Manager
• MegaCLI (command-line interface)
• WebBIOS
Optional SSD Optimization • MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance
controller cache pools
• MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID
SATA+SAS controllers
OS Support Extensive support includes Microsoft®
Windows®
Vista/2008/Server 2003, Linux®
, Solaris™ (x86), FreeBSD®
, VMware®
and more.
