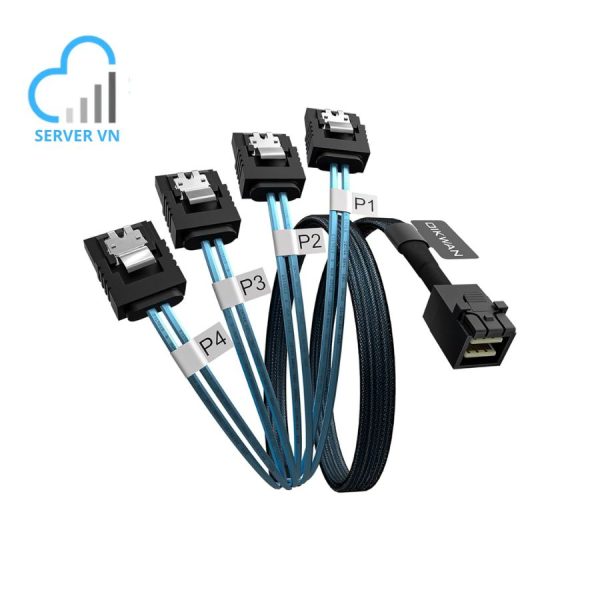

Cable OIKWAN Mini SAS SFF-8643 to 4 SATA 1M

Thông tin sản phẩm Cable OIKWAN Internal HD Mini SAS to 4XSATA Cable,1.6ft SFF-8643 Host to 4X SATA Target Cable Compatible with Raid Controller Hard Drive
Connect More with OIKWAN SAS & SATA Cabling Products. OIKWAN Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.
Important Notes
Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
Data transfer speed is determined by the capabilities of your SAS controller and SATA drives
Cable Specifications
– Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 – male with latch
– SATA Drive Connections: 4 x 7 pin SATA receptacle – female with latch
– Wire – 30 AWG Style 207044 flat ribbon cable
– Compatible with 2.5″, 3.5″ SATA I, II, III hard drives
– RoHS compliant
