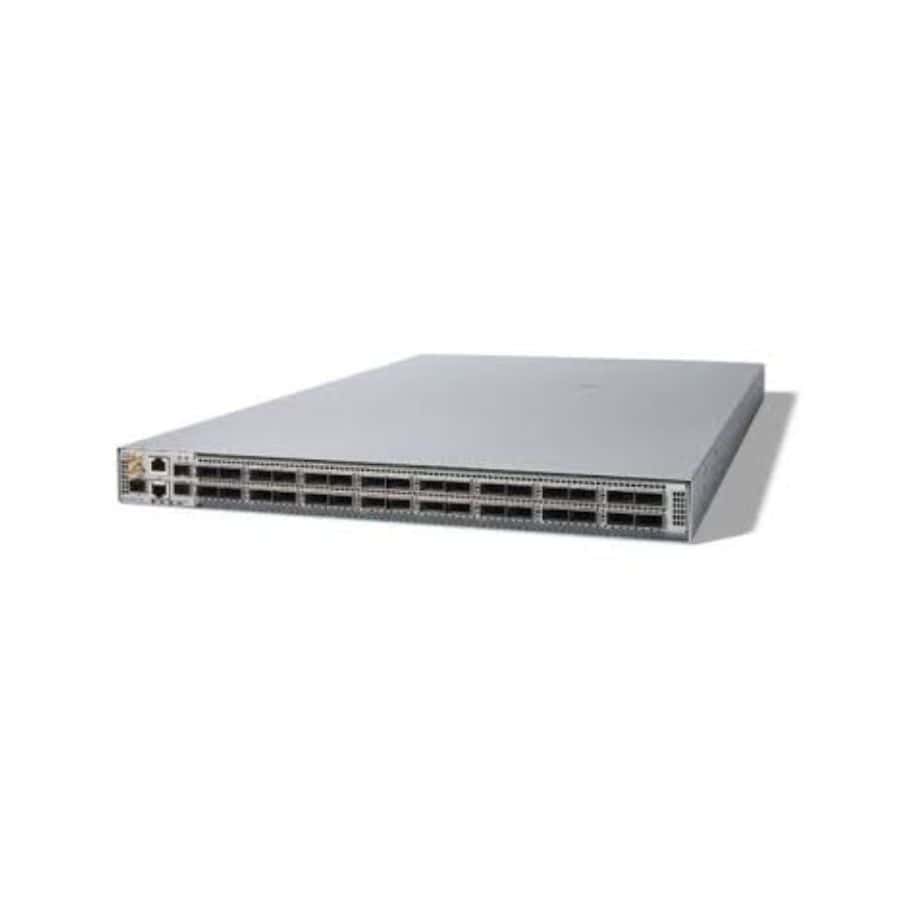

Switch Cisco N9K-C9332D-H2R, 32 x 400G QSFP-DD - Ảnh 2

Switch Cisco N9K-C9332D-H2R, 32 x 400G QSFP-DD

Liên hệ

Giá chưa bao gồm 8% VAT

Mã sản phẩm: N9K-C9332D-H2R
Cổng downlink: 32 x 400 Gbps QSFP-DD
Hỗ trợ tốc độ: 10, 25, 40, 50, 100, 200 và 400 Gbps
Cổng quản lý: 1 x RJ-45 và 1 x SFP
Bộ nguồn: 2000W
Bảo hành: 12 Tháng

SKU: SVN-N9K-C9332D-H2R Danh mục: Switch Thẻ: Cisco N9K, Cisco Nexus 9000 Series, N9K, Nexus, Switch Cisco Thương hiệu: Cisco

Mô tả
ĐÃ TRIỂN KHAI

Switch Cisco Nexus 9332D-H2R là thiết bị chuyển mạch Ethernet 400 Gigabit 1-Rack-Unit (1RU) 32 cổng, hỗ trợ băng thông 25,6 Tbps. Nexus 9332D-H2R hỗ trợ nhiều tốc độ và mật độ cổng thấp hơn, bao gồm 10, 25, 40, 50, 100 và 200 Gbps, bằng cách sử dụng các cổng breakout. Thiết bị cung cấp 80MB bộ đệm gói tin trên chip và 8GB bộ nhớ băng thông cao (hay còn gọi là HBM) với khả năng MACsec trên tất cả 32 cổng.

Thông số kỹ thuật N9K-C9332D-H2R

Specifications
Model	Cisco Nexus 9332D-H2R Switch
Technical	32-port 400G QSFP-DD ports> On-die buffer: 80MB High-bandwidth memory: 8GB System memory: 32GB, expandable to 64GB SSD: 128GB USB: 1 port RS-232 serial console ports: 1 Management ports: 2 CPU: 6 cores
Power and cooling	Power: 2000W AC, DC, HV Hot-swappable, 6 fans, 5+1 redundancy Typical power: 1015 W Maximum power: 1900 W
Physical and Environmental	Dimensions (H x W x D): 1.72 x 17.3 x 29.34 in. (4.36 x 43.94 x 74.52 cm) Acoustics: at 60% fan speed: 76.3dB at 70% fan speed: 80.4dB at 100% fan speed: 87.6dB Operating temperature: 32 to 104F (0 to 40C) Nonoperating (storage temperature): -40 to 131F (-40 to 55C) Humidity: 5 to 95% (non-condensing) Altitude: 0 to 10,000 ft (0 to 3048m) Mean Time Between Failure (MTBF): 154,950 hours
Performance and scalability specifications
Number of slices	4 slices
Maximum number of IPv4 Longest Prefix Match (LPM) routes	~2 Million
Maximum number of IPv4 host entries	~2 Million
Maximum number of IPv6 Longest Prefix Match (LPM) routes	~1 Million
Maximum number of IPv6 host entries	~2 Million
Maximum number of MAC address entries	~1 Million
Maximum number of multicast routes	256,000
Number of Internet Group Management Protocol (IGMP) snooping groups	Maximum: 32,000
Maximum number of Access Control List (ACL) entries	14,000 shared ingress and egress/slice Max: 56,000 shared ingress and egress
Maximum number of VLANs	4096
Number of Virtual Routing and Forwarding (VRF) instances	Maximum: 16,000
Maximum number of ECMP paths	128
Maximum number of port channels	512
Maximum number of links in a port channel	32
Number of SPAN sessions	32 (4 Active)
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances	4K
Maximum number of Hot-Standby Router Protocol (HSRP) groups	1000
Maximum number of Multiple Spanning Tree (MST) instances	64
Flow-table size	128K/slice
Number of Network Address Translation (NAT) entries	2000
Number of Output Queues per physical port	8
Weight
N9K-C9332D-H2Rwithout power supplies or fans	31.6 lbs (14.3 kg)
N9K-C9332D-H2Rwith power supplies and fans	38.4 lbs (17.4 kg)
NXA-SFAN-35CFM-PI	0.26 lbs (0.1 kg)
