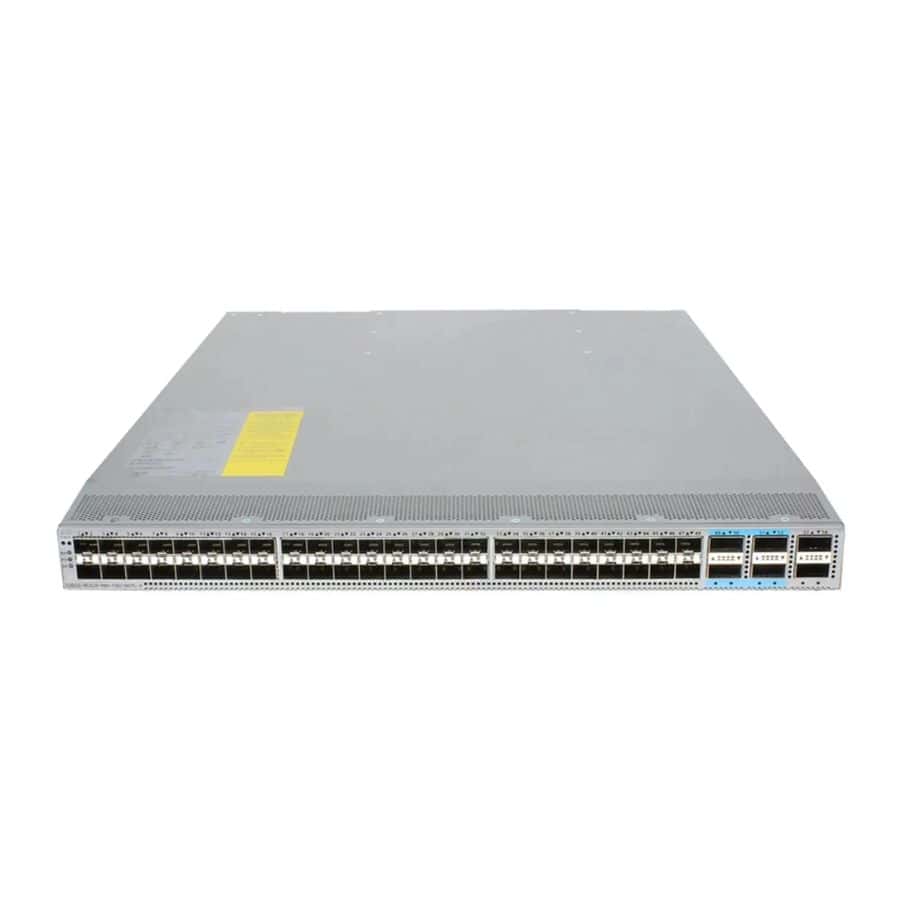

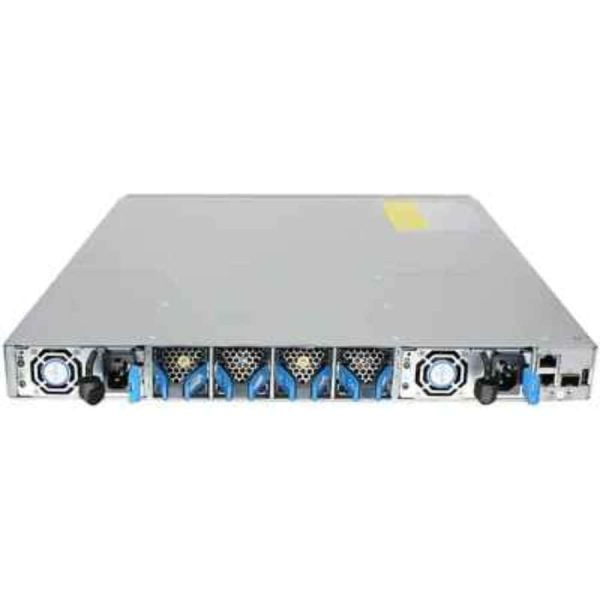

Switch Cisco N9K C92160YC-X, 48x 10G/25G SFP28 + 6x 40G (4x 100G) QSFP28 - Ảnh 2

Switch Cisco N9K C92160YC-X, 48x 10G/25G SFP28 + 6x 40G (4x 100G) QSFP28

17.800.000₫

Giá chưa bao gồm 8% VAT

Mã sản phẩm: N9K-C92160YC-X
Cổng downlink: 48 x 1G/10G/25G SFP+
Cổng uplink: 6 x 40G hoặc 4 x 100G QSFP+
Cổng quản lý: 1 x RJ-45 và 1 x SFP
Bộ nguồn: 2 x 650W
Bảo hành: 12 Tháng

SKU: SVN-N9K-C92160YC-X Danh mục: Switch Thẻ: Cisco N9K, Cisco Nexus 9000 Series, N9K, Nexus, Switch Cisco Thương hiệu: Cisco

Mô tả

Switch Cisco Nexus 92160YC-X là thiết bị chuyển mạch dạng 1 Rack-Unit (1RU), cung cấp băng thông lên đến 3,2 Terabit/giây (Tbps) và xử lý hơn 2,5 tỷ gói tin mỗi giây (bpps), đáp ứng hiệu suất cao cho các trung tâm dữ liệu hiện đại. N9K C92160YC-X được trang bị 48 cổng downlink có thể cấu hình để hoạt ở các tốc độ 1/10/25-Gbps, giúp tối ưu hóa triển khai theo nhu cầu thực tế. Các cổng uplink có thể hỗ trợ tối đa bốn cổng 100-Gbps hoặc sáu cổng 40-Gbps hoặc kết hợp kết nối 10-, 25-, 40- và 100-Gbps. N9K-C92160YC-X có FC-FEC được kích hoạt cho 25Gbps và hỗ trợ kết nối DAC lên đến 3m.

Thông số kỹ thuật switch cisco N9K C92160YC-X

Ports	48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable)
Supported speeds	1, 10, and 25 Gbps on SFP+ ports 10, 25, 40, and 100 Gbps on QSFP ports
Port configuration	48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps.
Telemetry support	Yes
CPU	2 cores
System memory	16 GB
Solid-State Disk (SSD) drive	64 GB
Shared system buffer	20 MB
Management ports	2 ports: 1 RJ-45 and 1SFP
USB ports	1
RS-232 serial ports	1
Power supplies (PSU – up to 2)	650W AC, 930W DC, or 1200W AC/HVDC
Typical power (AC)	10-Gbps mode: 150W 25-Gbps mode: 170W
Maximum power (AC)	475W
Input voltage (AC)	100 to 240V
Input voltage (HVAC)	200 to 277V
Input voltage (DC)	–40 to –72V DC (minimum and maximum) –48 to –60V DC (nominal)
Input voltage (HVDC)	240 to 380V
Frequency (AC)	50 to 60 Hz
Fans	4
Airflow	Port-side intake and exhaust
MTBF (hours)	379,400
Physical (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Acoustics	51.9 dBA at 40% fan speed, 56.2 dBA at 70% fan speed, and 66.0 dB at 100% fan speed
RoHS compliance	Yes
Performance and scalability specifications
Number of Longest Prefix Match (LPM) routes	Default: 6,000
Number of IP host entries	Default: 96,000
Number of MAC address entries	92,000
Number of multicast routes	Shipping: 8000 Maximum: 32,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups	Shipping: 8000
Number of Access Control List (ACL) entries	Per slice of the forwarding engine: 4000 ingress 2000 egress
Maximum number of VLANs	4096
Number of Virtual Routing and Forwarding (VRF) instances	Shipping: 1000
Maximum number of links in a port channel	32
Maximum number of ECMP paths	64
Maximum number of ECMP groups	256
Maximum number of ECMP members	64,000
Maximum number of port channels	512
Maximum number of port channels	4
Number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances	3967
Number of Hot-Standby Router Protocol (HSRP) groups	490
Number of Multiple Spanning Tree (MST) instances	64
Maximum Number of VXLAN Tunnel Endpoints (VTEPs)	256
Number of Network Address Translation (NAT) entries	1023
Environmental properties
Operating temperature	32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature	-40 to 158°F (-40 to 70°C)
Humidity	5 to 85% (noncondensing)
Altitude	0 to 13,123 ft (0 to 4000m)
Weight
Weight without power supplies or fans	24.6 lb (11.2 kg)
