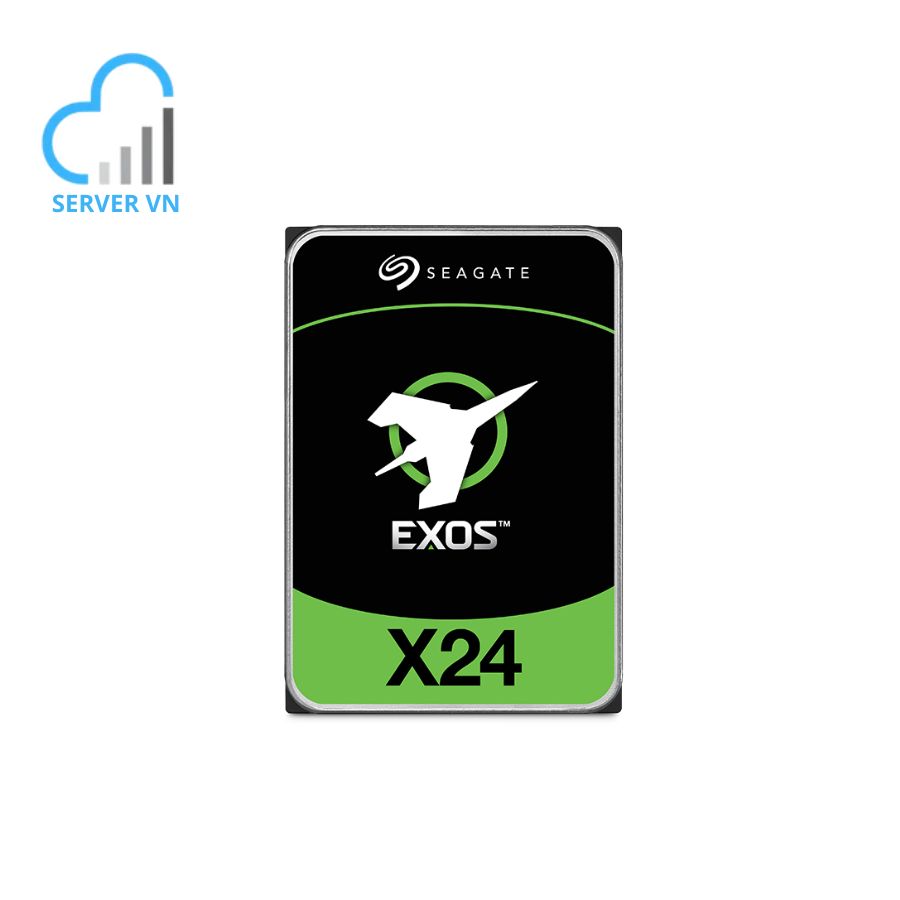

ST24000NM001H – Seagate Exos X24 24TB SED Enterprise 512e/4Kn SATA 6Gb/s 7200RPM 512MB 3.5in
16.200.000₫
Giá chưa bao gồm 8% VAT
- Model: Exos x24
- Part No: ST24000NM001H
- Capacity: 24TB
- Interface: SATA 6Gb/s
- Cache: 512MB
- Spindle Speed (RPM): 7,200 RPM
- Bảo hành: 36 tháng
Thông tin sản phẩm Seagate Exos X24 24TB SED Enterprise 512e/4Kn SATA 6Gb/s 7200RPM 512MB 3.5in (ST24000NM001H)
| Model No | ST24000NM001H |
| Capacity | 24 TB |
| Cache (MB) | 512MB |
| Mean Time Between Failures (MTBF, hours) | 2500000 hr |
| 512e Sector Size (Bytes per Sector) | 512 |
| Power-On Hours per Year (24×7) | 8,760 |
| 4Kn Sector Size (Bytes per Sector) | 4,096 |
| Spindle Speed (RPM) | 7200 RPM |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 285/272 |
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 |
| Power Supply Requirements | +12 V and +5 V |
| Height (mm/in, max) | 26.1 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.010 in |
| Depth (mm/in, max) | 147 mm/5.787 in |
| Weight (gm/lb) | 685 g/1.51 lb |
| Specifications | SATA 6Gb/s | |||
|---|---|---|---|---|
| Capacity | 12 TB | 16 TB | 20 TB | 24 TB |
| Standard Model - Seagate Instant Secure Erase (ISE) | ST12000NM002H | ST16000NM002H | ST20000NM002H | ST24000NM002H |
| SED Model | ST12000NM001H | ST16000NM001H | ST20000NM001H | ST24000NM001H |
| FEATURES | ||||
| Helium Sealed-Drive Design | Yes | Yes | Yes | Yes |
| Conventional Magnetic Recording (CMR) | Yes | Yes | Yes | Yes |
| SuperParity | Yes | Yes | Yes | Yes |
| PowerChoice™ Idle Power Technology | Yes | Yes | Yes | Yes |
| PowerBalance™ Power/Performance Technology | Yes | Yes | Yes | Yes |
| Hot-Plug Support | Yes | Yes | Yes | Yes |
| Cache, Multi-segmented (MB) | 512 | 512 | 512 | 512 |
| RSA 3072 Firmware Verification (SD&D) | Yes | Yes | Yes | Yes |
| RELIABILITY/DATA INTEGRITY | ||||
| Mean Time Between Failures (MTBF, hours) | 2500000 hr | 2500000 hr | 2500000 hr | 2500000 hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% | 0.35% | 0.35% | 0.35% |
| Non-recoverable Read Errors per Bits Read | 1 in 10E15 | 1 in 10E15 | 1 in 10E15 | 1 in 10E15 |
| Power-On Hours per Year (24×7) | 8,760 | 8,760 | 8,760 | 8,760 |
| 512e Sector Size (Bytes per Sector) | 512 | 512 | 512 | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4,096 | 4,096 | 4,096 | 4,096 |
| Limited Warranty (years) | 5 | 5 | 5 | 5 |
| PERFORMANCE | ||||
| Spindle Speed (RPM) | 7200 RPM | 7200 RPM | 7200 RPM | 7200 RPM |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 285/272 | 285/272 | 285/272 | 285/272 |
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 | 168/550 | 168/550 | 168/550 |
| Interface Ports | Single | Single | Single | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec) | 12.5 | 12.5 | 12.5 | 12.5 |
| POWER | ||||
| Idle A (W) Average | 6.3 | 6.3 | 6.3 | 6.3 |
| Max Operating, Random Read/Write 4K/16Q (W) | 8.9, 7.1 | 8.9, 7.1 | 8.9, 7.1 | 8.9, 7.1 |
| Power Supply Requirements | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V |
| ENVIRONMENTAL | ||||
| Temperature, Operating (°C) (Ambient/Drive Reported) | 5 / 60 | 5 / 60 | 5 / 60 | 5 / 60 |
| Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 | 2.27 | 2.27 | 2.27 |
| Shock, Operating 2 ms (Read/Write) (Gs) | 40 Gs | 40 Gs | 40 Gs | 40 Gs |
| Shock, Non-operating 2 ms (GS) | 200 | 200 | 200 | 200 |
| PHYSICAL | ||||
| Height (mm/in, max) | 26.1 mm/1.028 in | 26.1 mm/1.028 in | 26.1 mm/1.028 in | 26.1 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.010 in | 101.85 mm/4.010 in | 101.85 mm/4.010 in | 101.85 mm/4.010 in |
| Depth (mm/in, max) | 147 mm/5.787 in | 147 mm/5.787 in | 147 mm/5.787 in | 147 mm/5.787 in |
| Weight (gm/lb) | 685 g/1.51 lb | 685 g/1.51 lb | 685 g/1.51 lb | 685 g/1.51 lb |
| Carton Unit Quantity | 20 | 20 | 20 | 20 |
| Cartons per Pallet / Cartons per Layer | 40/8 | 40/8 | 40/8 | 40/8 |
