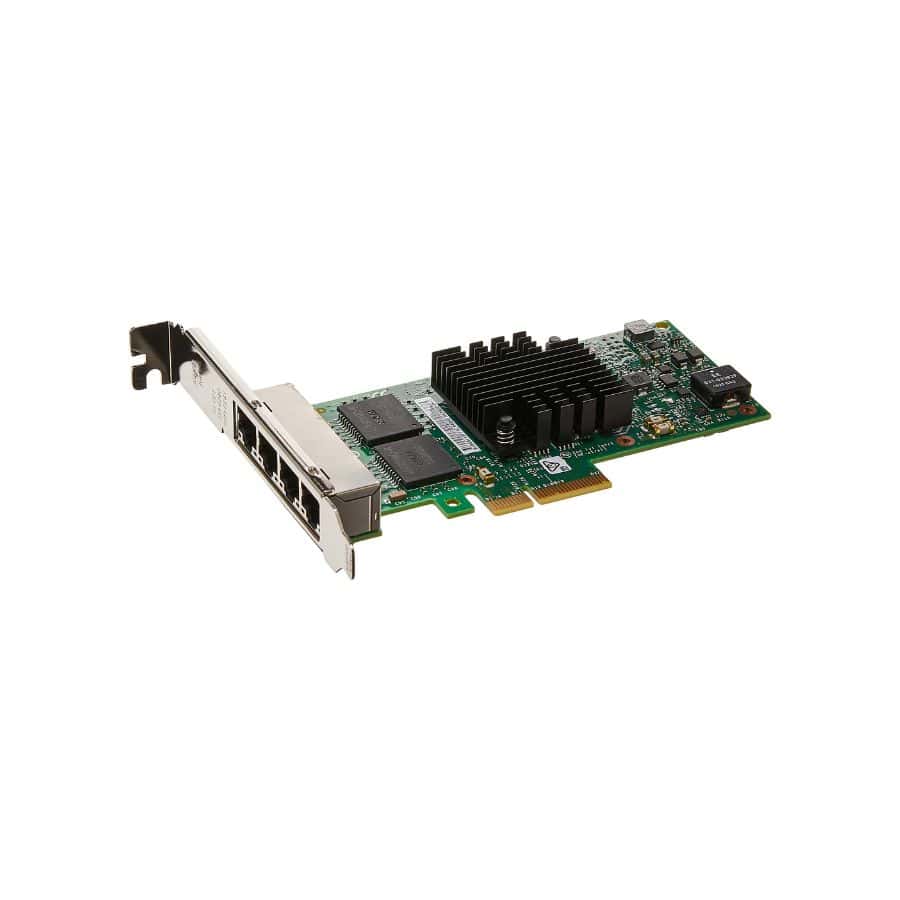

Card mạng Intel I350-T4v2

Name: Card mạng Intel I350-T4v2
Brand: Intel
SKU: SVN-I350-T4v2
Availability: InStock

Liên hệ

Giá chưa bao gồm 8% VAT

SKU: SVN-I350-T4v2 Danh mục: Card Mạng Server Thương hiệu: Intel

Thông số kỹ thuật card mạng Intel I350-T4v2

General	Card mạng Intel Ethernet Server Adapter I350-T4
Device Type	Network adapter
Connectors	RJ-45 (Copper) LC Fiber Optic (Fiber)
IEEE standard/network topology	IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
Cabling:	Copper: Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation Fiber: MMF 62.5/50 um
Data rate supported per port:	10/100/1000 Mbps (Copper), 1000 Mbps (Fiber)
Bus type	PCI Express* 2.1 (5 GT/s)
Bus width	4-lane PCI Express; operable in x4, x8 and x16 slots
Interrupt levels	INTA, INTB, INTC, INTD, MSI, MSI-X
Hardware certifications	FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Controller-processor	Intel Ethernet Controller I350
Power consumption (typical)	Copper: I350T2V2 4.4 W I350T4V2 5.0 W Fiber: I350F2 5.5 W I350F4 6.0 W
Operating temperature	0 °C to 55 °C (32 °F to 131 °F)
Storage temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity	90% non-condensing relative humidity at 35 °C
Connect Speed LED Indicators	Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper) Green=1 Gb/s. Not illuminated=no link (Fiber)
Connectivity Technology	Wired
Interface (Bus) Type	PCI Express 4 x 1000Base-T – RJ-45
Ports	Gigabit Ethernet x 4
Data Link Protocol	GigE
Công suất tiêu thụ :	Copper: I350T2V2 4.4 W I350T4V2 5.0 W Fiber: I350F2 5.5 W I350F4 6.0 W
